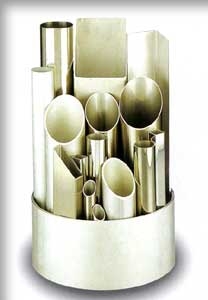

Stainless Rectangle Welded Tube

Stainless Welded Rectangular mechanical tubing is supplied according to ASTM A554 specifications cold worked unless otherwise. Most commonly available Grades these tubes supplied in are 304, 304-L, 316, 316L. Lean Duplex e.g W-NR 1.4162, 1.4062 supply is also available for supply from Europe. Some of the applications these rectangular & square tubing goes into are, construction industry, food & beverage, building & renovations, process machinary, offshore & marine industries, transport, architectural. Stainless corrosion resistance/self-healing properties, aesthetic elegance, hygenic features combined with higher strength with fire resistance compared to carbon steel, low maintenance, 100% recyclable, surface finish options, low temperature toughness, cold formability and long life cycle provides further advantage in all types of structures or applications.

Sizes: 10mm x 20mm to 200mm x 400mm.

Delivery: 30 - 90 Days Ex Production + Shipping. Specific accurate delivery lead-timings can be arranged - Refer sales office.

Supplied: 6 M Lengths. Custom produced/cut lengths (save costs). Refer sales office.

Clients choice as to country of origin.

Mechanical & Structural Stainless Steel Tubes■ASTM A554 ■JIS G3446 ■CNS G3119
■SURFACE FINISH:		2-B, MF, Polished 180 Grit (Hairline), 220#, 240#,320#,400#,600#.-Other Finishes Refer Sales Office.
● RECTANGULAR TUBES.				● METRIC Sizes-Available - Specific Project Applications - Please contact sales office.
TH - mm 厚度Thickness/Tebal
OD
mm	0.7	0.8	0.9	1.0	1.2	1.5	1.6	2.0	2.5	3.0	4.0	5.0	6.0
10 X 20
10 X 25
10 X 30
10 X 40
10 X 50
10 X 60
10 x 70
10 X 75					.
10 x 80					.
10 x 90					.
10 x 100					.
13 X 26
15 x 20	.
15 x 25	.
15 X 30	.
15 x 40		.
15 X 50
15 x 60				.
15 x 70					.
15 x 75					.
15 x 80					.
15 x 90					.
15 x 100					.
20 x 25		.
20 X 30
20 X 40
20 x 50		.
20 x 60					.
20 x 70					.
20 x 75					.
20 x 80						.
20 x 90						.
20 X 100						..
25 x 30		.
25 x 38		.
25 x 40		.
25 X 50		..
25 x 60				.
25 x 70				.
25 x 75				.
25 x 90					.
25 x 80					.
25 x 100					.
30 x 40		.
30 X 50
30 X 60
30 x 70			.
30 x 75			.
30 x 80			.
30 x 90				.
30 x 100				.
35 x 45		.
35 x 50		.
35 x 60				.
35 x 75				.
35 x 90		.
40 x 50		.
40 X 60		..
40 x 70			.	.
40 X 80				..
40 x 100		.
45 x 50		.
45 x 60		.
45 x 75
45 x 95		..
50 x 60		.
50 x 75		.
50.8 x 76.2				.
50 x 100				.
50 x 125				.
50 x 150						.
50 x 200					.
60 x 100						.
60 x 120						..
60 x 150						.
70 x 90 75 x 175						.
70 x 90 75 x 175						.
80 x 90 250 x 300						.
80 x 90 250 x 300						.
Note:			(Large Diameter Thin Wall Tubing 8" OD(204mm) - 24" OD(609.6mm) European Specs) Refer Ling>>>
* Diamentional Tol: Refer Specifications Link>>>
* For Certain Size/s - Minimum Order Quantities May Apply. Enquire/Discuss with our Sales Office.
* Project Specific Enquiry - Cost Effective & Reliable Delivery - Contact Sales Office to Discuss.

EUROPEAN ORIGIN. Lean Duplex - W-NR 1.4162, 1.6062
As Welded Mechanical & Structural Stainless Steel Hollow Sections.
■SURFACE FINISH: Brushed Polished for Tube Dimensions ≤ 100 x 100 x 6mm. For tube Dimensions > 100 x 100 x 6 mm - Unpolished/Mill Finish.
Other Finishes/Sizes/Custom Lengths-Specific Project Applications Requirments - Please contact sales office.
● RECTANGULAR		厚度Thickness/Tebal
● RECTANGULAR		Weight Kg/M
H x B (mm)		1.5	2.0	2.5	3.0	4.0	5.0	6.0
30	20	1.055
40	20	1.289	1.667
40	30	1.523	1.979
50	20	1.523	1.979
50	25	1.64	2.135
50	30	1.757	2.291
50	40	1.991	2.603
60	20	1.757	2.291
60	30	1.991	2.603
60	40	2.225	2.915	3.579
70	50	2.693	3.539	4.359	5.154
80	40	2.693	3.539	4.359	5.154	6.667
80	60		4.163	5.139	6.090	7.915
100	40		4.163	5.139	6.090	7.915
100	50		4.475	5.529	6.558	8.539
100	60		4.787	5.919	7.026	9.163
120	40		4.787	5.919	7.026	9.163
150	100				11.238	14.779	18.217	21.552
200	100				13.578	17.899	22.117	26.232
250	150				18.258	24.139	29.917	35.592
300	100				18.258	24.139	29.917	35.592
300	200					30.379	37.717	44.952
400	200					36.619	45.517	54.312
* Project Specific Enquiry - Cost Effective & Reliable Delivery - Contact Sales Office to Discuss.

ASTM A-554 - 03 CHEMICAL REQUIRMENTS
Grade	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Nickel	Chromium	Molybdenum	Titanium	Columbium + Tantalum
	Max	Max	Max	Max	Max
Austenitic
301	0.15	2.00	0.040	0.030	1.00	6.0-8.0	16.0-18.0
302	0.15	2.00	0.040	0.030	1.00	8.0-10.0	17.0-19.0
304	0.08	2.00	0.040	0.030	1.00	8.0-13.0	18.0-20.0
304-L	0.035 ͣ	2.00	0.040	0.030	1.00	8.0-13.0	18.0-20.0
305	0.12	2.00	0.040	0.030	1.00	10.0-13.0	17.0-19.0
309S309S	0.08	2.00	0.040	0.030	1.00	12.0-15.0	22.0-24.00
309-S-Cb	0.08	2.00	0.040	0.030	1.00	12.0-15.0	22.0-24.00			ͩ
310S	0.08	2.00	0.040	0.030	1.00	19.0-22.0	24.0-26.0
316	0.08	2.00	0.040	0.030	1.00	10.0-14.0	16.0-18.0	2.0-3.0
316-L	0.035 ͣ	2.00	0.040	0.030	1.00	10.0-15.0	16.0-18.0	2.0-3.0
317	0.08	2.00	0.040	0.030	1.00	11.0-14.0	18.0-20.0	3.0-4.0
321	0.08	2.00	0.040	0.030	1.00	9.0-13.0	17.0-20.0		ͨ
330	0.15	2.00	0.040	0.030	1.00	33.0-36.0	14.0-16.0
347	0.08	2.00	0.040	0.030	1.00	9.0-13.0	17.0-20.0			ͩ
Ferritic
429	0.12	1.00	0.040	0.030	1.00	0.50max	14.0-16.0
430	0.12	1.00	0.040	0.030	1.00	0.50max	16.0-18.0
430-Ti	0.12	1.00	0.040	0.030	1.00	0.075max	16.0-19.5		5 x C min, 0.75 max
ͣ Small dia or thin walls or both, where many drawing passes are required, a carbon content of 0.040% max is necessary in grades 304-L & 316-L.
Small Outside Dia Tubes are defined as those less than 0.500 in (12.7mm) & light wall tubes as those less than 0.049 in (1.24 mm) in average wall thickness.
ͩ The columbium plus tantalum content shall be not less than ten times the carbon content and not more than 1.00 %
ͨ The titanium content shall be not less than five times the carbon content and not more than 0.60 %.

Stainless welded mechanical tubing supplied as cold worked unless otherwise specified.
ASTM A-554 - 03 Permissible Variations in Dimensions-Square & Rectangular Tubing.
Largest Specified Outside Dimension Across Flats - in. (mm)	Wall Thickness, in. (mm)	±, in. (mm), across Flats, Convexity or Concavity, incl
To 1 1/4 (31.8), incl	All	0.015 (0.38)
Over 1 1/4 to 2 1/2 (31.8 to 63.5), incl	All	0.020 (0.51)
Over 2 1/4 to 5 1/2 (63.5 to 139.7), incl	All	0.030 (0.76)
Over 5 1/4 to 8 (139.7 to 203.2), incl	All	0.060 (1.52)
Wall Thickness Tolerance = ± 10 % of Specified Wall Thickness
Maximum Radii of Corners
Wall Thickness, in. (mm)	Radii of Corners, max, in. (mm)
Over 0.20 to 0.049 (0.51 to 1.24), incl	3/32 (2.4)
Over 0.049 to 0.065 (1.24 to 1.65), incl	1/8 (3.2)
Over 0.065 to 0.083 (1.65 to 2.11), incl	9/64 (3.6)
Over 0.083 to 0.095 (2.11 to 2.42), incl	3/16 (4.8)
Over 0.095 to 0.109 (2.42 to 2.77), incl	13/64 (5.2)
Over 0.109 to 0.134 (2.77 to 3.40), incl	7/32 (5.6)
Over 0.134 to 0.156 (3.40 to 3.96), incl	1/4 (6.4)
Over 0.156 to 0.200 (3.96 to 5.08), incl	3/8 (9.5)
Over 0.200 to 0.250 (5.08 to 6.35), incl	1/2 (12.7)
Over 0.250 to 0.375 (6.35 to 9.53), incl	3/4 (19.1)
Twist Tolerances
Largest Size, in. (mm)	Twist in 3 ft, max, in. (mm/m)
Under 1/2 (12.7)	0.050 (1.4)
1/2 to 11/2 (12.7 to 38.1), incl	0.075 (2.1)
Over 11/2 to 21/2 (38.1 to 63.5), incl	0.095 (2.6)
Over 21/2 to 4 (63.5 to 101.6), incl	0.125 (3.5)
Over 4 to 6 (101.6 to 152.4) incl	0.250 (6.9)
Over 6 (152.4)	0.375 (10.4)
Squareness of Sides
± B = C x 0.006
where:
B = tolerance for out-of-square, and C = length of longest side.
The straightness tolerance is 0.075 in. in 3 ft or 2.1 mm in 1m using a 3-ft (1-m) straighedge and feeler gage.

CHEMICAL COMPOSITION - LEAN DUPLEX W-NR 1.4162, 1.4062.
EN (W-NR)	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Nickel	Chromium	Molybdenum	Nitrogen	Others
	C	Mn	P	S	Si	N	Cr	Mo	N
1.4162 ͣ	0.04	4.0-6.0	0.040	0.015	1.00	1.35-1.70	21.0-22.0	0.10-0.80	0.20-0.25	Cu 0.1-0.8
1.4062	0.03	2.00	0.040	0.010	1.00	1.0-2.9	21.5-24.0	0.45	0.16-0.28
ͣ Fulfills the standards EN 10088-2 and EN 10088-4
CHEMICAL COMPOSITION - FERRITIC W-NR 1.4003
1.4003	0.03	1.50	0.040	0.015	1.00	0.3-1.0	10.5-12.5		0.30
Fulfills the standards EN 10088-2 and EN 10088-4

MECHANICAL PROPERTIES
(Measured from coil, minimum values unless indicated otherwise)
LEAN DUPLEX
EN		0,2% - proof strength RP0,2 Mpa	Tensile strength Rm Mpa	Elongation A * %
1.4162 ͣ	T ≤ 3 mm	530	700-900	20
	T > 3 mm	480	680-900	30
	T ≤ 3 mm	530	700-900	20
1.4062	T > 3 mm	480	680-900	30
ͣ Fulfils the standard EN 10088-4.
FERRITIC
	0,2% - proof strength RP0,2 Mpa	Tensile strength Rm Mpa	Elongation A * %
	320	450-650	20
* A80 when T < 3 mm, A5 when T ≥ 3 mm.
SSM reserve the right to changes & takes no responsibility for any error of any numerical/values information that may appear on this site.

LEAN DUPLEX W-NR 1.4162, 1.4062) - EUROPEAN ORIGIN
TOLERANCE (according to EN 10219-2)
Description	Tolerance
Outside dimensions, B and H (1)	B, H < 100 mm ± 1 %, min ± 0.5 mm
	B, H ≥ 100 mm ± 0.8 %, min. ≤ 200mm
	B, H > 200 mm ± 0.6 %
Concavity / Convexity (X ¹ / X ² )	Max, 0.8 % with minimum of 0.5 mm
Wall Thickness, T	± 10 %
Squareness	90 ͦ ± 1 ͦ
External corner profile, C 1, C 2 or R (1)	B, H ≤ 100 mm: 1.6 T - 2.4 T
	B, H > 100 mm and T ≤ 4 mm:
	2,0 T - 3.0 T
	B, H > 100 mm and T > 4 mm:
	1.6 T - 2.4 T.
Length	Standard length 6 M. Tolerance 0/ + 20 mm (1)
Straightness	0.15 % of total length.
Twist	2 mm + 0.5 mm/m
(1) Exception from standard.
Delivery Condition & Welding	Forming - Cold formed (roll formed)
	Welding Process - TIG/Plasma, Laser or HF
	Weld Condition - External weld bead removed. Weld position narrow side
Markings on Tube	Ink-jet markings: Mill, Country of manufacture, grade, size, material traceability details, production dates & operator who welded.
Packaging: Bundles	Plastic bands, Bundle Tags & Plastic foils. Any other packaging method subject to prior arrangments.
Surface Finish	Brushed/Polished Sizes: ≤ 100mm x 100mm x 6 mm
	Unpolished Sizes: > 100 mm x 100 x 6mm
